Creating Metafields for wheel/tire product attributes

To create metafield definitions:

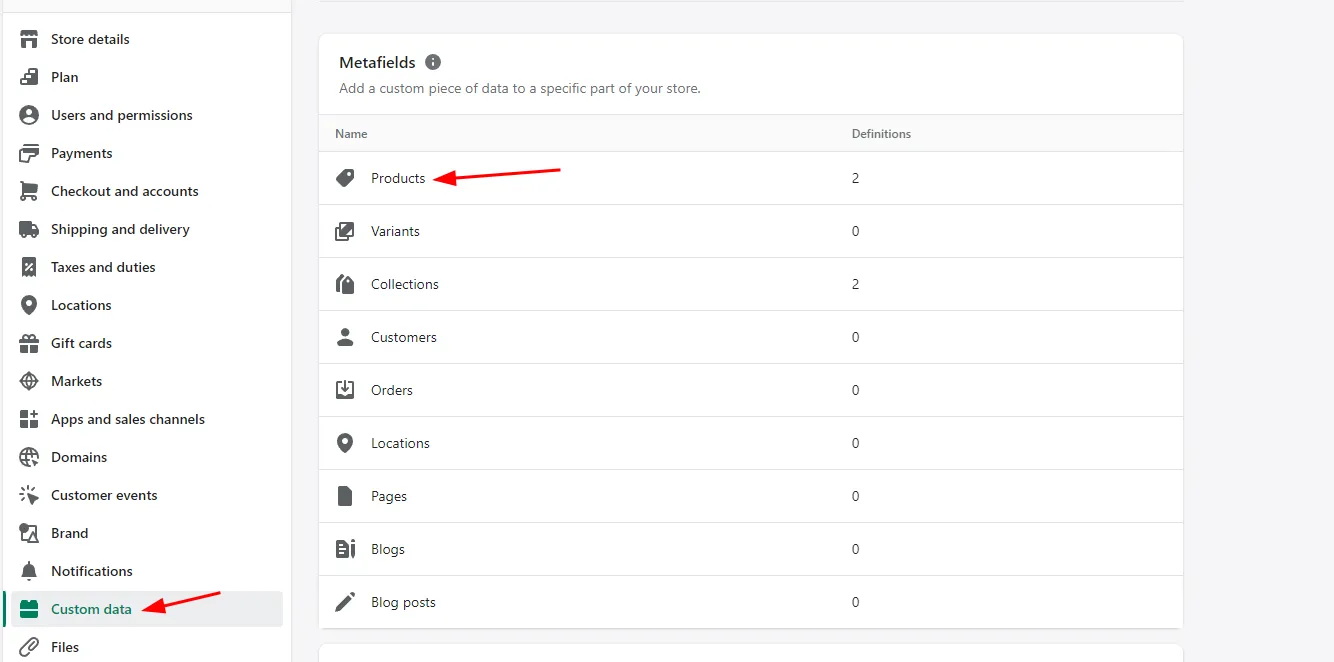

1. Open “Settings” and select “Custom data” → “Products”:

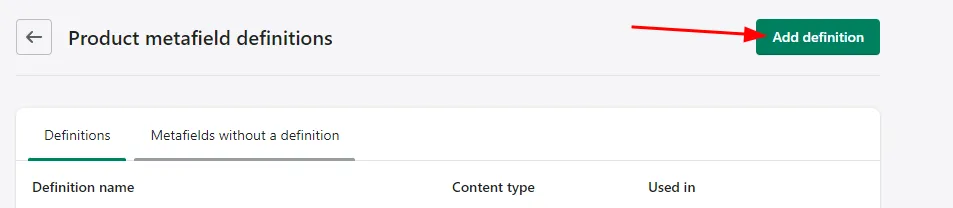

2. Click “Add Definition”

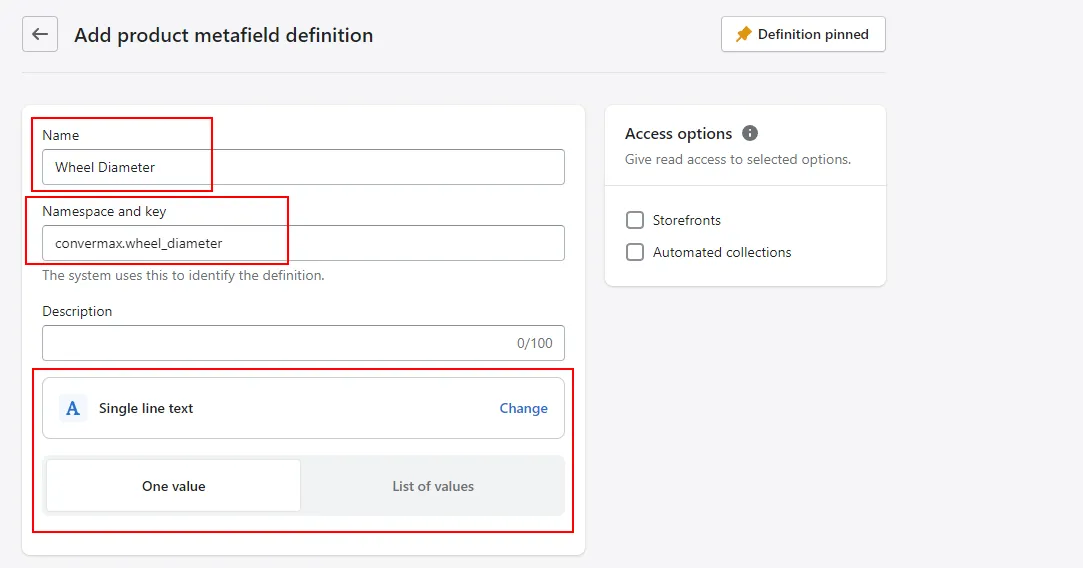

3. Fill in the name, namespace, key, and select the type (see the values below).

4. Click “Save”.

Please note that if you add any wheel or tire attribute to the metafield, we stop parsing attributes from the title for that product at all. So you’ll need to add all the attributes for that product to the metafields.

---

Wheel fields:

Name	Namespace.Key	Type
Wheel Diameter	convermax.wheel_diameter	Single line text (one value)
Wheel Width	convermax.wheel_width	Single line text (one value)
Wheel Bolt Pattern	convermax.wheel_bolt_pattern	Single line text (one value)
Wheel Offset	convermax.wheel_offset	Single line text (one value)
Wheel Bore	convermax.wheel_bore	Single line text (one value)
Wheel Max Load	convermax.wheel_max_load	Single line text (one value)

Use this template for importing product data with corresponding wheel fields:

https://docs.google.com/spreadsheets/d/1ZIE7RFGEn6VBFHmGQrCxxMUwBLGMdX6YQbmATFBoJII/edit?usp=sharing

wheel_product_template.csv 3930

Tire fields:

Option 1:

Name	Namespace.Key	Type
Tire Width	convermax.tire_width	Single line text (one value)
Tire Aspect Ratio	convermax.tire_aspect_ratio	Single line text (one value)
Tire Rim Diameter	convermax.tire_rim	Single line text (one value)
Tire Load Index	convermax.tire_load_index	Single line text (one value)
Tire Speed Rating	convermax.tire_speed_rating	Single line text (one value)

Option 2:

Name	Namespace.Key	Type
Tire Size	convermax.tire_size	Single line text (one value)
Tire Load Index	convermax.tire_load_index	Single line text (one value)
Tire Speed Rating	convermax.tire_speed_rating	Single line text (one value)

Use this template for importing product data with corresponding tire fields:

https://docs.google.com/spreadsheets/d/1F2ToAP7SiJqocv2rYFgI4wtTSSUy-s2NaGVAvwmtuoQ/edit?usp=sharing

tire_product_template.csv 4182
